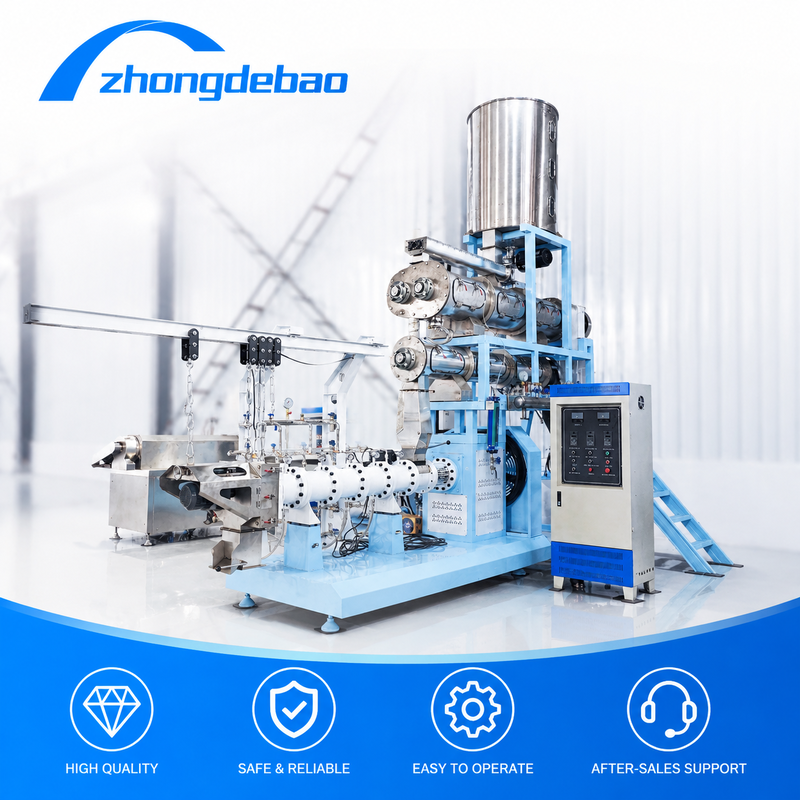

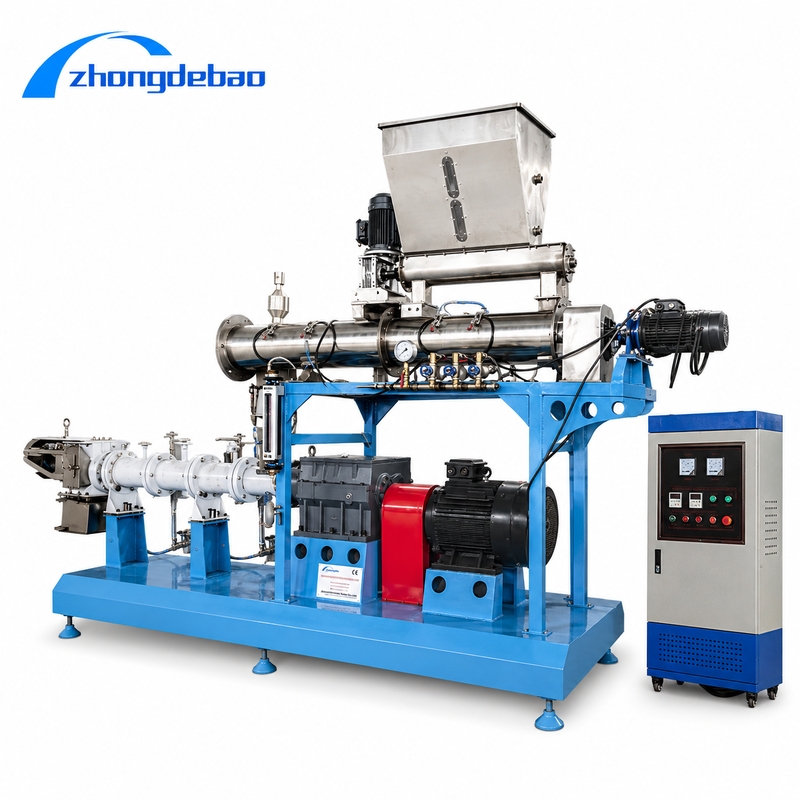

Automatic Fish Feed Pellet Extruder Machine for Aquaculture Feed Production

automatic fish feed pellet machine

aquaculture feed extruder machine

floating fish feed production equipment

원래 장소:

중국

브랜드 이름:

Zhongdebao

인증:

CE,BV,ISO,SGS

모델 번호:

TSP90

문서:

(2025 Eternalwin) Aquatic P...re.pdf

연락주세요

인용문을 요구하세요

제품 상세정보

펠렛 직경:

6-12 mm

상태:

새로운

핵심 구성요소:

모터

용량:

시간 당 1-10 톤

보증:

12개월

연탄 모양:

베개 또는 빵 모양 등

재료:

스테인레스 스틸

기능:

생산하는 동물은 환약을 공급합니다

다이 홀:

2.5-10mm

색상:

사용자 정의할 수 있습니다

지불과 운송 용어

최소 주문 수량

1세트

가격

10000USD-100000USD

배달 시간

20일

지불 조건

L/C,D/A,D/P,T/T,웨스턴 유니온

Twin Screw Fish Feed Extruder Machine for Floating and Sinking Feed

최상의 가격을 얻으세요

화면

Automatic Fish Feed Pellet Extruder Machine for Aquaculture Feed Production

최상의 가격을 얻으세요

화면

Industrial Floating Fish Feed Extruder Machine Complete Production Line

최상의 가격을 얻으세요

화면

500kg/h-10t/h 다기능 단일 트윈 스크류 압출 라인 (사료 및 반려동물 사료 생산용)

최상의 가격을 얻으세요

연락주세요

지금 접촉하세요

제품 설명

Multifunctional Single Twin Screw Feed Extrusion Line 500kg/h-10t/h For Fish Feed And Pet Food Production

Welcome to Our Factory! We specialize in high-quality fish feed and pet food extrusion production lines, with a capacity of 500KG/H-10t/h, supporting both single screw and twin screw options. Our complete production line integrates mixing, extrusion, drying, cooling, and packaging, meeting the needs of small, medium and large-scale feed factories, aquaculture farms and pet food processing enterprises. CE & ISO certified, stable performance, easy operation, and customized solutions available.

Product Overview

Our fish feed/pet food extruder production line is a fully automatic integrated equipment designed for high-efficiency feed processing. It is suitable for producing floating & sinking fish feed (for tilapia, catfish, shrimp, trout) and dry/wet pet food (for dogs, cats, birds, rabbits). With a production capacity of 500KG/H-10t/h, it supports free switching between single screw and twin screw (single screw for small-scale production, cost-effective; twin screw for high output, uniform pellet quality, suitable for large-scale factories). The whole line adopts stainless steel material, which is corrosion-resistant, easy to clean, and meets food-grade standards.

Core Parameters

Parameter Item	Specification
Production Capacity	500KG/H - 10t/h (adjustable according to demand)
Screw Type	Single Screw / Twin Screw (optional, can be customized)
Feed Type	Fish Feed (floating & sinking); Pet Food (dry/wet kibble, treats)
Material	Stainless Steel 304 (contact part with feed), carbon steel (frame)
Power	15KW - 120KW (depends on capacity and screw type)
Voltage	380V/50Hz (customizable for 220V/60Hz according to country)
Pellet Size	1-10mm (adjustable by changing die)
Certification	CE, ISO 9001
Automation Level	Full Automatic (one person can operate the whole line)

Complete Line Configuration

The production line is fully equipped, no need to purchase additional equipment, and can be put into use after installation. The standard configuration includes 6 core parts:

Raw Material Mixer: Mix various raw materials (corn flour, soybean meal, fish meal, vitamin, etc.) evenly, ensuring uniform nutrition of feed.
Screw Extruder: Core equipment, single/twin screw optional, high-temperature and high-pressure extrusion, making feed pellets with good taste and easy digestion.
Dryer: Rapid drying of extruded pellets, reducing moisture content to ≤12%, extending shelf life.
Cooler: Cool down the dried pellets to room temperature, avoiding moisture regain and caking.
Sieve: Remove broken pellets and impurities, ensuring uniform pellet size and improving product quality.
Packing Machine: Automatic weighing and packing, improving packaging efficiency, suitable for commercial sales.

Product Advantages

Double Screw & Single Screw Optional: Flexible selection according to your production scale. Single screw is cost-effective for small farms; twin screw has high output, stable performance, and is suitable for large factories.
Wide Capacity Range: 500KG/H-10t/h, customizable according to your actual needs, from small home business to large industrial production.
Full Automatic Operation: Integrated control system, one person can operate the whole line, saving labor cost.
High Quality & Food Grade: All contact parts with feed are made of 304 stainless steel, corrosion-resistant, non-toxic, meeting international food-grade standards.
Multifunctional Application: One line for two uses, can produce both fish feed and pet food, reducing equipment investment.
Energy Saving & High Efficiency: Optimized structure design, low power consumption, high extrusion efficiency.
CE & ISO Certified: Passed international certification, quality guaranteed, can be exported worldwide.
Customizable Service: We can customize the production line according to your specific requirements.

Application Scenarios

Our production line is widely used in various fields, suitable for different types of customers:

Aquaculture Farms: Produce floating & sinking fish feed for tilapia, catfish, shrimp, trout, salmon, etc.
Pet Food Factories: Produce dry kibble, wet food, dog chews and other pet food for dogs, cats, birds, rabbits.
Feed Processing Enterprises: Large-scale production of fish feed and pet feed for commercial sales.
Small & Medium Business: Suitable for entrepreneurs to start a business, low investment, high return.

Working Principle

Raw Material Mixing: Put corn flour, soybean meal, fish meal, vitamin, mineral and other raw materials into the mixer, and mix them evenly.
Extrusion Molding: The mixed raw materials are sent to the screw extruder, and under high temperature and high pressure, form pellets of different sizes.
Drying & Cooling: The extruded pellets are sent to the dryer to remove excess moisture, then cooled to room temperature.
Sieving & Packing: The cooled pellets are sieved to remove broken pellets, then automatically weighed and packed.

Quality Assurance & After-Sales Service

Quality Assurance: All equipment is strictly inspected before delivery, with a 1-year warranty period.
Installation & Training: We send professional engineers to your factory for on-site installation, debugging and operation training.
After-Sales Support: 24-hour online service, reply within 1 hour for any problems.
Spare Parts Supply: We have a large stock of spare parts for quick delivery.

Why Choose Us?

Professional Manufacturer: 10+ years of experience in feed extrusion equipment production.
Customized Solutions: We design the most suitable production line according to your actual needs.
International Certification: CE & ISO certified, exported to more than 50 countries.
One-Stop Service: From product design, production, installation, training to after-sales maintenance.
Competitive Price: Factory direct sales, no middlemen, providing high-quality products at competitive prices.

If you are interested in our fish feed/pet food extruder production line, please contact us immediately for detailed quotation, product video and customized solution!
