High Efficiency Vertical Ring Die Pellet Mill for Biomass with Vertical Feeding and Energy Saving Design

Vertical Feeding Biomass Pellet Machine

High Efficiency Wood Pellet Mill

Energy Saving Vertical Ring Die Pellet Mill

원래 장소:

중국

브랜드 이름:

Zhongdebao

인증:

연락주세요

인용문을 요구하세요

제품 상세정보

색상:

맞춤형

보증:

12개월

지불과 운송 용어

최소 주문 수량

가격

USD 11000--USD20000 Per Set

포장 세부 사항

나무 케이스 패키지

배달 시간

영업일 기준 10-15일

지불 조건

L/C, T/T, 웨스턴 유니온

공급 능력

달 당 500 세트

고품질 링 다이 목재 펠릿 프레스 기계, 청정 에너지 생산용

최상의 가격을 얻으세요

화면

자동 윤활 및 효율적인 헬리컬 기어 변속을 갖춘 고품질 합금강 링 다이 우드 펠릿 기계

최상의 가격을 얻으세요

화면

바이오매스 펠릿 생산 라인을 위한 상업용 링 다이 목재 펠릿 기계

최상의 가격을 얻으세요

화면

바이오매스 연료 펠렛 생산을 위한 고효율 링 다이 목재 펠렛 공장

최상의 가격을 얻으세요

연락주세요

지금 접촉하세요

제품 설명

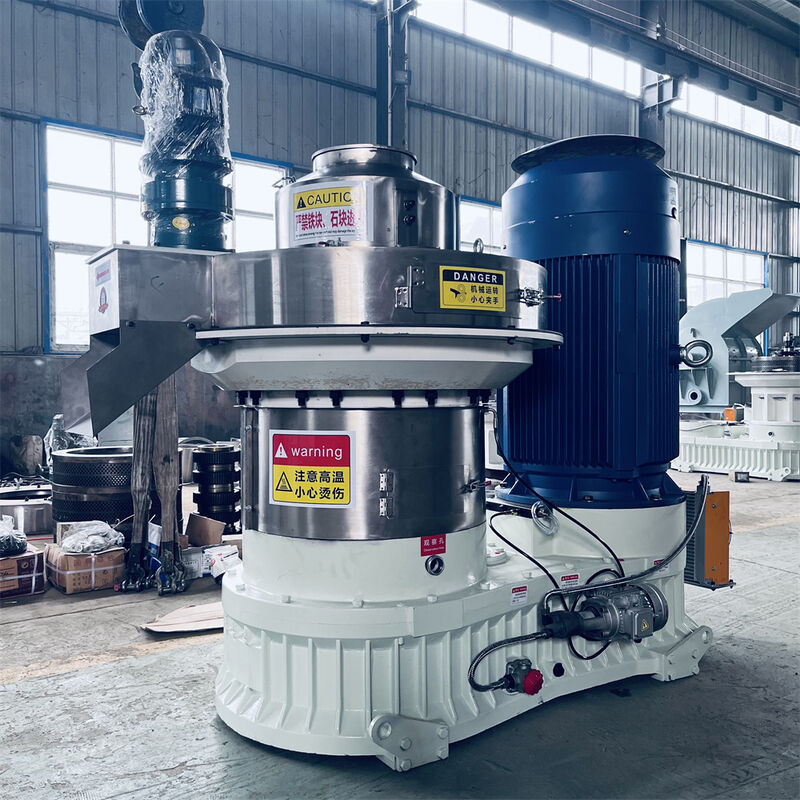

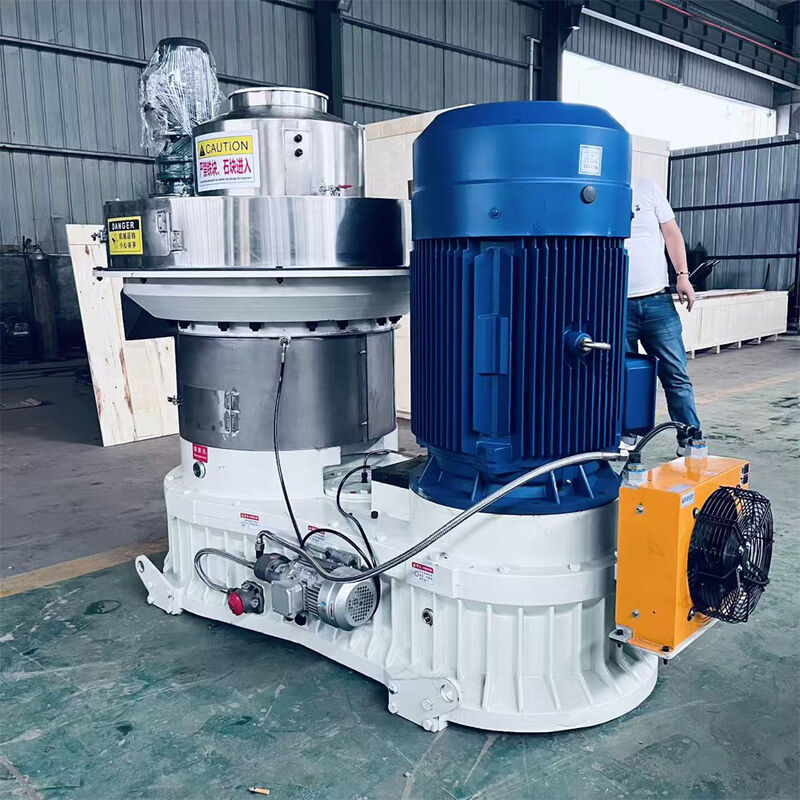

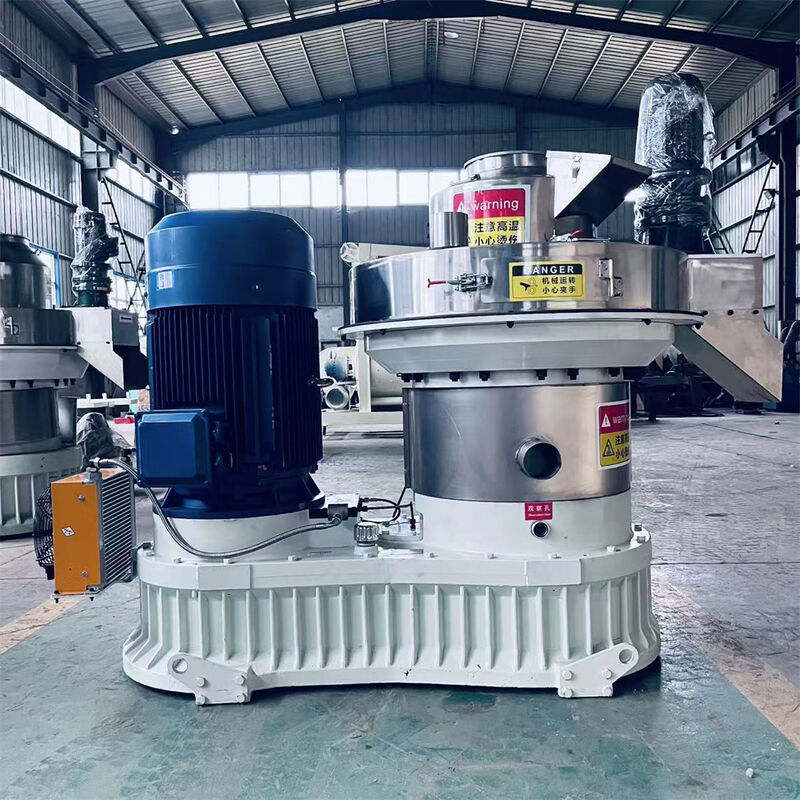

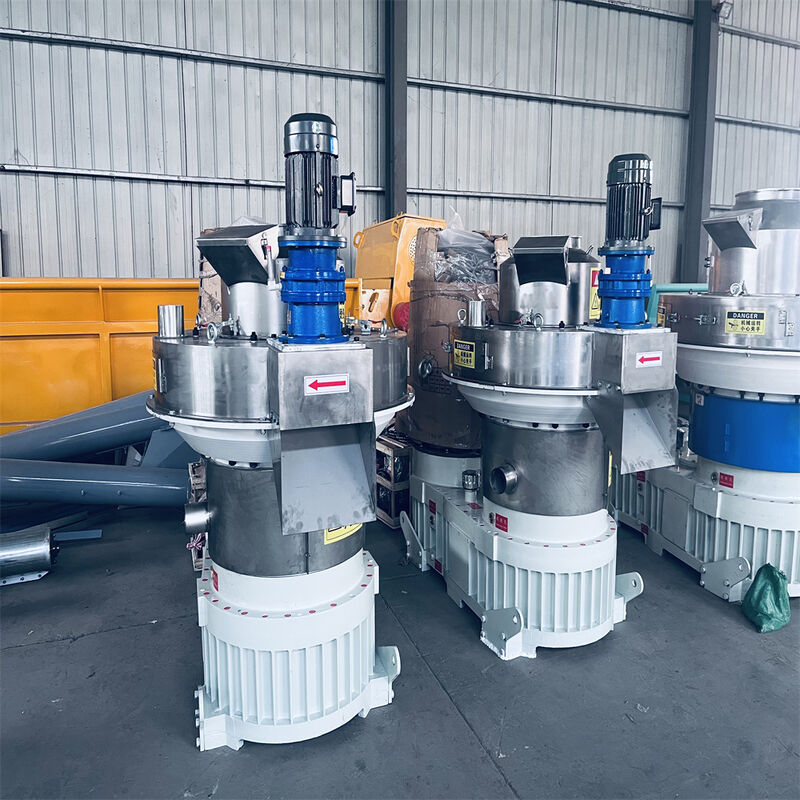

Vertical Ring Die Sawdust Pellet Mill

The Vertical Ring Die Sawdust Pellet Mill is a high-efficiency, energy-saving biomass pelletizing device optimized for processing sawdust and various woody biomass materials. Featuring a vertical feeding and pressing structure, this industrial-scale machine produces wood pellets for fuel, animal bedding, and other applications.

Core Definition & Applications

This specialized machine compresses sawdust, wood shavings, wood chips, and other woody residues (with 12%-15% moisture content and particle size ≤8mm) into dense cylindrical pellets (6-10mm diameter, 1-3cm length) through high-pressure extrusion. The natural lignin in wood acts as a binder, eliminating the need for additives.

Biomass Fuel: For power plants, boilers, and household heating systems
Animal Husbandry: High-density feed pellets and bedding materials
Industrial Processing: Wood waste recycling in factories and workshops

Working Principle

Feeding: Materials enter vertically from the top by gravity, preventing arching and ensuring even distribution
Pressing: Fixed vertical ring die cooperates with 2-3 rotating rollers applying centrifugal and extrusion pressure
Cutting: Adjustable frequency-conversion cutting device trims pellets to required length with high pelletizing rate
Discharging: Pellets discharge from bottom with vertical structure facilitating heat dissipation and dust collection

Technical Specifications

Model	Main Motor Power (KW)	Pellet Size (mm)	Production Capacity (t/h)	Overall Dimension (LWH, m)	Weight (T)
EWVR450	55	6-12	0.8-1	1.81.11.5	2.2
EWVR560	90	6-12	1.5-2	2.11.31.6	4.6
EWVR600	110	6-12	2-2.5	2.31.41.7	5.8
EWVR650	132	6-12	2.5-3	2.51.51.8	7.2

Structural Highlights

Vertical Ring Die Design: Fixed die and rotating rollers ensure uniform material stress and high pellet density
Automatic Lubrication: Hydraulic system automatically injects and filters oil for long-term stable operation
Frequency-Conversion Cutting: Adjustable pellet length to meet diverse customer requirements
Safety Protection: Overload protection and emergency stop functions prevent equipment damage

Performance Advantages

Compared with traditional pellet mills, our vertical ring die design provides superior material flow, lower failure rates, and easier maintenance. Particularly effective for processing low-adhesion materials like sawdust and rice husks, making it a cost-effective solution for medium to large pellet production lines.

Why Choose Our Pellet Mills

Professional R&D Team

Custom pelleting solutions tailored to your raw material characteristics and output requirements

Strict Quality Control

Each machine undergoes rigorous testing to ensure stable performance and reliability

Comprehensive Support

Installation guidance, operation training, and lifelong technical support services

Energy Efficiency

Helps achieve resource recycling and meets environmental protection standards

For detailed product information and pricing, contact our sales team today. We respond within 24 hours!
