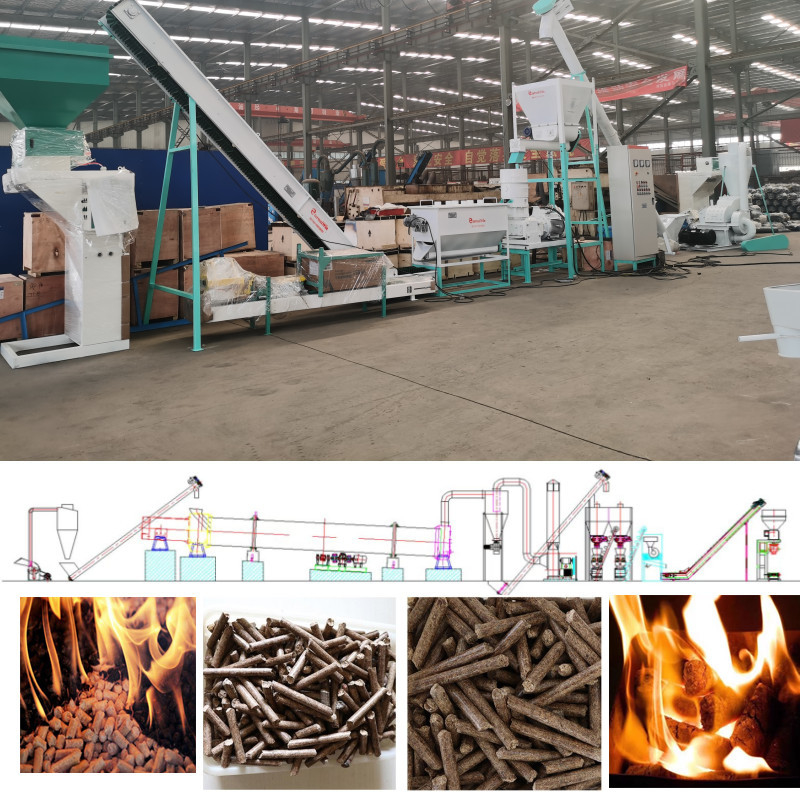

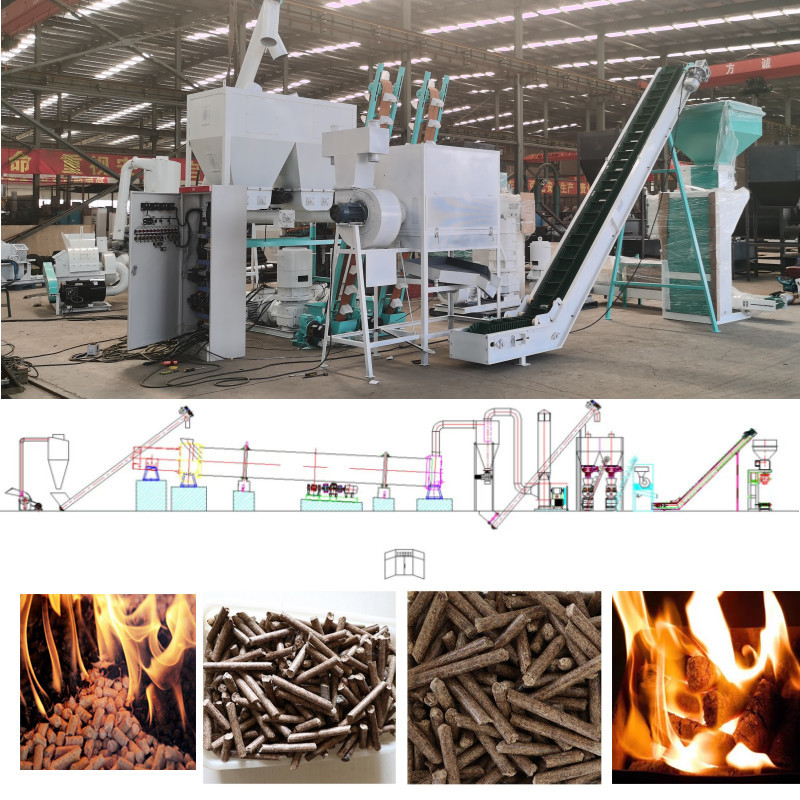

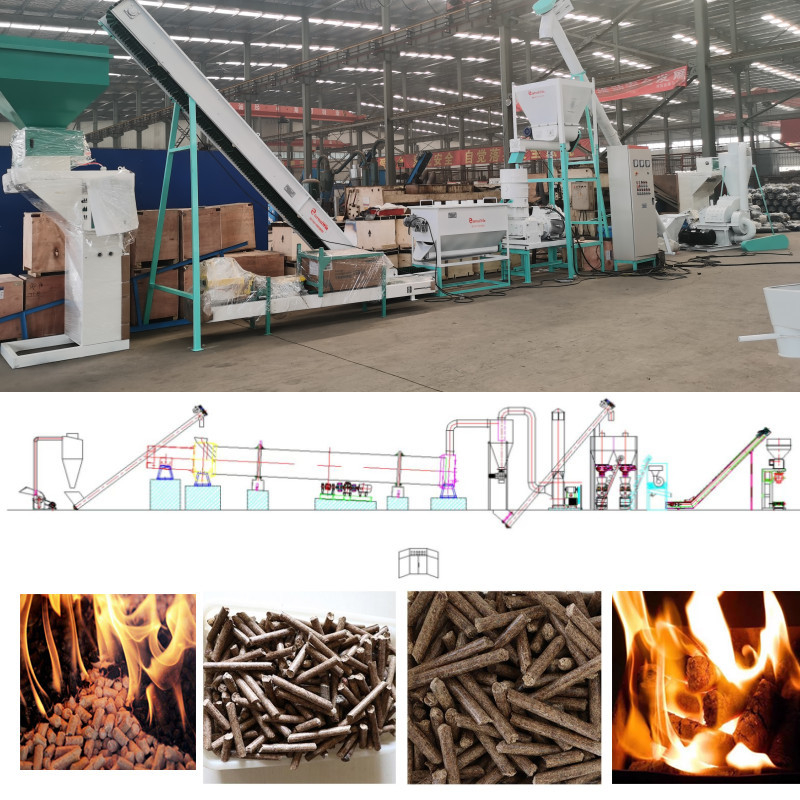

1TPH-10TPH Biomass Wood Chips Eucalyptus Pine Birch Poplar Pellet Production Line
To make the wood into chips with less than 5cm . Drum type wood chipper is an ideal equipment to produce large capacity wood chips . The uniquely designed presure reducing device ensures the long-term stable operation of the equipment .
2. Crushing section :
The wood crushing system can make wood chips into wood sawdust. The hammer mill is applied mainly to grind the raw materials to make it suitable to make pellets . The impeller variable frequency feeder is used to ensure work efficiency .
3. Drying section :
The rotatry drum dryer is designed to reduce the moisture of the unqualitified raw material , for which the mositure is too high . the moisture will be from 50% reduce to 15-18% . Burning stove to supply hot air to drum dryer .

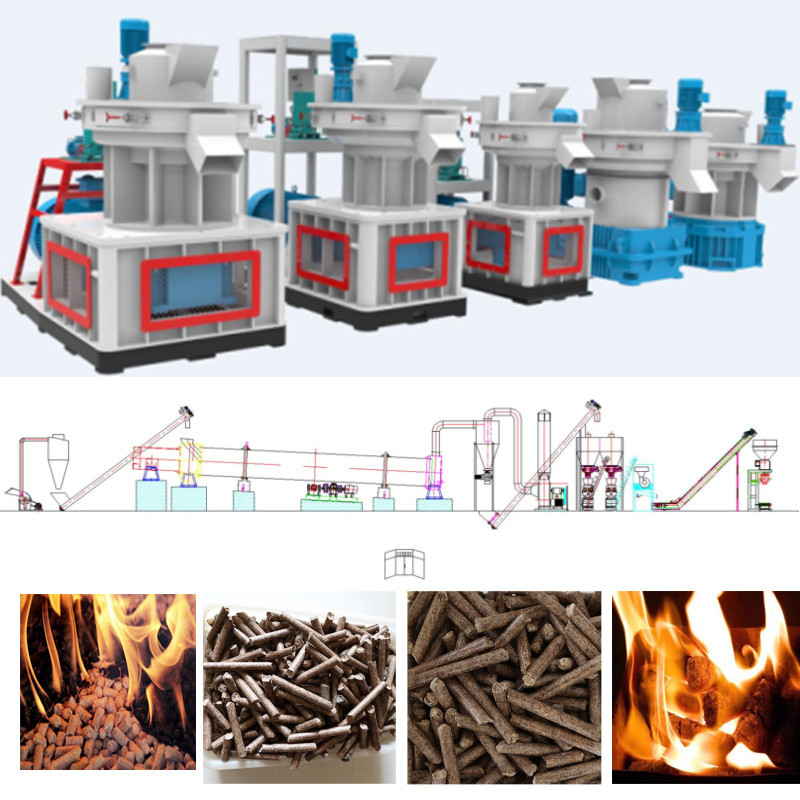

4. Pelleting section :
This is the core equipment of the production line . Used to make wood sawdust into pellets . The more wear-resistant 42CrMo ring die is used to produce wood pellets with a high compression ratio .
5. Cooling section :
To cool the pellets to room temperature and remove the moisture in the pellets , The hardness of the pellets will become stronger . So as to obtain better hardness and strength . It can also improve transportaion capacity and storage capacity .
6. Packing section :
The pellets are packed into plastic bag from 10kg-100kg . then use the thermoplastic sealing machine to sew . these can make the pellets dry and water-proof . To extend the wood pellets storage time .

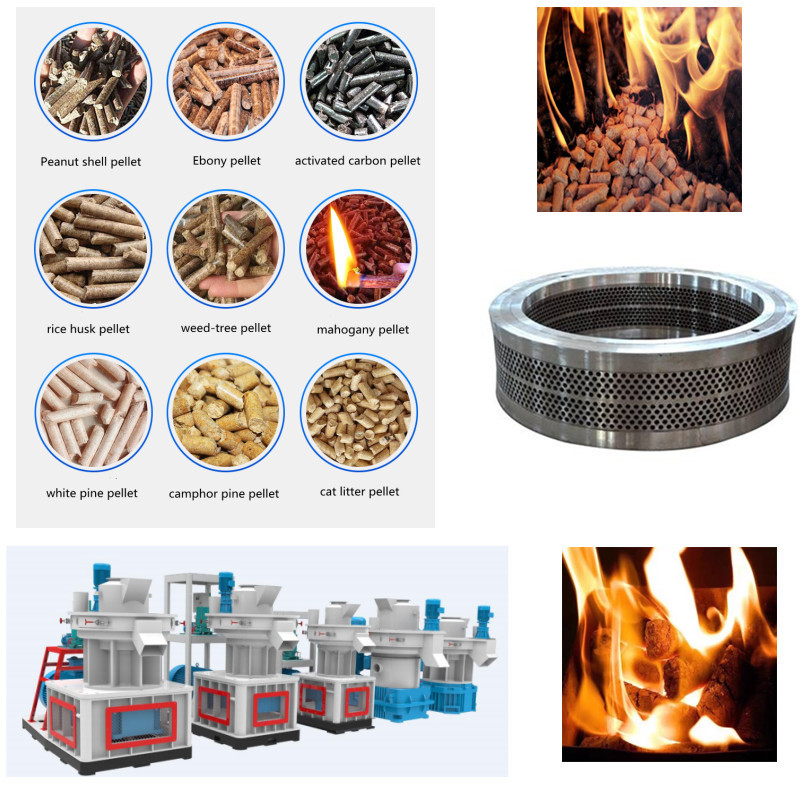

For the pellet mold/die the diameter generally will be 6mm or 8mm .
The finished sample pellet for your reference :
